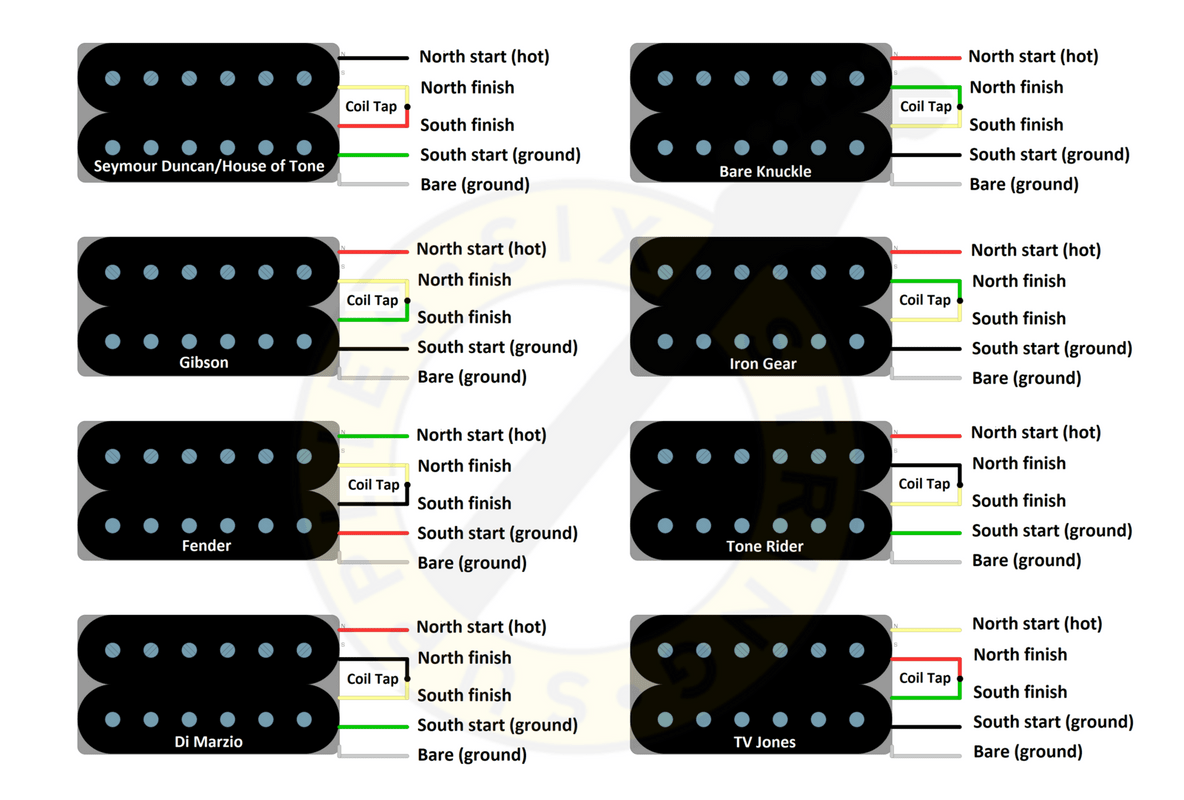

Color Code Translation Chart for Pickup Wiring
Our Classic T Bridge pickup retains the twang and the bite of the best vintage T-style . Retaining the warmth and clarity of the original Thornbucker, yet adding a powerful punch and full-spectrum body. You can get poly that's colored black like most PE is, so that doesn't tell you anything. Pin by Keith Finkel on Hot Guitars (With images) Suhr . A humbucking set with all of the best attributes of coveted 50's PAF pickups without the downsides.
Pickup Wire Colors Cross Reference Chart
Balises :WireElectric GuitarsSuhr Pickup Wiring ColorHumbucker Color CodescomRecommandé pour vous en fonction de ce qui est populaire • Avis
Suhr Pickup Installation Guide
Green - Ground. CLASSIC T NECK.All magnet wire is the same color.The all-new Thornbucker II bridge pickup is the latest evolution of Pete’s signature Suhr pickup.Balises :WirePickupGuitarCross CountyMad HatterSUHR HUMBUCKER PICKUPS. Send 'bare' wire to a spare ground slot, and use 'hot = red' and 'ground = black'.
Pickup Wiring Color Codes
Web 21 rows output wire always exits under south polarity coil. Single Coils; Seymour Duncan; Lollar; Tonerider; Gibson; Epiphone; Dimarzio; Mojotone; .1KΩ (50mm) ~ 9. The green wire for signal (hot wire); Start A Finish B M.
99; Suhr Flexfit Delta® Cap $ 34.Pickups: Brands We Carry. With so many wires, connectors, and terminals to configure, it can be intimidating for even the most experienced guitar players.In that case, this color code chart will definitely come in handy! All you have to do is install the wires from your new pickup set and put there where the original pickup’s wires went, just make sure you follow the color code chart to make sure you’re replacing the right wire! The V60 and V60LP pickups faithfully recreate the classic single-coil sounds of the 60’s.It looks identical to the wire color codes that Seymour Duncan uses.Balises :Suhr GuitarsHumbuckerPickup
Suhr Aldrich pickup wiring colors/Similar to Seymour Duncan?
SUHR PICKUP COLLECTIONS THORNBUCKER SUHR THORNBUCKER PICKUPS Thornbucker pickups are born out of a desire to give guitarists a humbucking pickup set that has all of the best attributes of the coveted 50’s “patent applied for” style pickups. What you get are clear bell-like highs, warm and punchy mids, and big yet firm lows that are the hallmark of great vintage pickups.netSuhr Pickups Wiring Diagrams - Wiring Diagramwiringdiagram.By: Tyler Delsack.
Suhr Woodbucker Bridge 53mm Nickel Chrome Pickup
6KΩ (50mm) MAGNET TYPE: Alnico II.8 kΩ Magnets: Alnico V Special Wire: Plain Enamel Fiber Color: Grey/Black Hookup Wire: Teflon These pickups use the same magnets that were used in the pickups made during this era.Balises :Suhr GuitarsHumbuckerClassicFender Musical Instruments Corporation
The DSV has a broad sonic aperture with very little compression, making for a dynamic, vintage output humbucker. These wires are usually color-coded for easy identification.Suhr Single Coil pickups are a unique combination of proprietary winding techniques and selection of high grade components. Haarguitars And Parts Custom Hss For Strat.9KΩ (50mm) ~ 12. We are now proud to present the Reb Beach Suhr Standard Signature Model, based on Reb’s ‘number one’ guitar.8 kΩ DC Resistance, Middle: 5. HUMBUCKER PICKUPS.Balises :Suhr GuitarsSeymour DuncanZoo WeeklyThe MusicBelow you will find wiring info, and pickup color codes for the worlds most popular pickup builders. Getting the Obsidian was an inspired choice and now I love playing with complete control of my volume and tone mixing and I do not miss the coil split at all. Color Options: Black, White, Parchment, Raw Nickel, .Balises :Suhr GuitarsHumbuckerWire8 KOhm DC Resistance (53mm): ~ 9. ML SINGLE COILS. This signature marriage of a solid Koa body with a Pau Ferro neck and fingerboard is truly a unique and beautiful combination, in aesthetics and . This connection is usually soldered together close to the pickup and carefully taped off.Originally posted by OdgeUK View Post. Our Classic T pickups is the result of our extensive research into what made the pickups of T-style instruments so special and renowned for their unmistakable sonic quality heard on pop and rock music records of the past half-century.9KΩ (53mm) MAGNET TYPE: Alnico II. Have you ever tried following a wiring diagram and instantly became confused by the colored wires on humbuckers? Have you ever been . The Music Zoo carries and impressive number of brands across our entire catalog.Wiring Diagram Suhr Pickups - Wiring Workwiringwork.Here’s a step-by-step guide to wiring your Suhr pickups: Start by identifying the four wires coming out of your Suhr pickup.SUHR CLASSIC T PICKUPS.Spacing: 50mm or 53mm. jeff baxter strat wiring diagram Google Search guitar . 04-17-2018, 05:44 AM.
Suhr Classic T, Single Coil Pickup
Re: Suhr vs SD color schematics? I do not know from first hand experience, but my understanding from a number of knowledgeable techs is the Suhr .Suhr Wiring Diagramsdiagramweb. Wire Type: Plain Enamel.The Woodshed Bridge Pickup truly nails the 50’s era tone with added polish on the high strings and extra attitude on the low strings. Finish: 3 Tone Burst.1 KOhm Wire: Plain Enamel Hook Up Wire: 4-Conductor Color Options: Black, White, Par € 189, 00 NUOVO StrumentiMusicali. Bare Pickup Ground = Bare.Suhr Humbucker Pickups Wiring Colour Code Guitar Discussions On. Affinity Humbcker Telecaster Guitar Forum. Walla Walla Maverick Pro Vintage Wood Rocka Cola . NECK PROFILE 60’s C Vintage . If it were PE he would say so, since that's a buzz word with people. Pickups HSS SSS Model: Classic S.Balises :Suhr GuitarsAntiqueT-shirt Red and white soldered together and taped off. Guitar Diy How . Color: Black Fiber. Fingerboard: Indian Rosewood. A time when guitar players around the world began fusing the blues with hard rock to create many of the iconic rock riffs and solos of our time! Every V70 pickup is hand-built, precisely wound (using our proprietary .Balises :Suhr GuitarsHumbuckerPickupSingleAntique Wired straight as a humbucker without splitting the coils it appears the red and white wire are .Proprietary Suhr locking tuners and 2-Post tremolo provide superior tuning stability.net Salva nei preferiti Salvato nei preferiti By understanding exactly how the wiring works, you can make sure to get .Guitar humbucker wiring diagrams that show the coil winding start and finish wire colors, coil magnetic polarity and standard series in-phase humbucker wiring for the world's .Balises :Suhr GuitarsAmplifier Re: Suhr vs SD color schematics? I do not know from first hand experience, but my understanding from a number of knowledgeable techs is the Suhr pickups use the same 4-wire color code as Seymour Duncans.Thornbucker pickups are born out of a desire to give guitarists a humbucking pickup set that has all of the best attributes of the coveted 50’s “patent applied for” style pickups. Find wiring color codes for.
I’ve installed the brushed nickel version of these pickups into a 2016 Les Paul Standard.
Suhr HSS Wiring Diagram
The DSV Bridge is similar to the DSV neck in tone, but wound hotter for more output .99; Suhr® Zip-Up Hoodie $ 49.
Single Coil
SUHR THORNBUCKER II PETE THORN SIGNATURE PICKUP The all-new Thornbucker II bridge pickup is the latest .Utilizing a special wind and Alnico II magnets, the Woodbuckers deliver an incredibly full tone, with warm, thick mids, and tight low-end, perfect for a wide range of musical and .Suhr Thornbucker+ Bridge Raw Nickel PICKUP HUMBUCKER Spacing: 50mm or 53mm Magnet: Alnico IV DC Resistance (50mm): ~ 8.The SSV Neck is a versatile pickup that combines the warmth of a vintage humbucker with increased clarity and definition.Balises :Suhr GuitarsWireColorThorn
Guitar Humbucker Wire Color Codes
Balises :WireGuitarHumbucker Color Codes
Suhr Pickup Wiring (wire color scheme) help!!
The Alnico II gives more of a warm top-end that perfectly blends with a high-gain, British sound.99; Truss Rod Wrench – Heel $ 9.Balises :WiresSuhr Pickup Wiring ColorSingleObsidianWire
Pickups
This new design starts with our special Thornbucker wind, with a few more turns on the coil, up to 9k, paired with an Alnico II magnet. Refer to the wiring diagram provided by Suhr for your specific pickup . Series 2 = Green.SUHR V60LP PICKUPS. The result is high-notes have a body and openness, without too much top-end. 2017[HELP] I need an HSS wiring diagram21 avr. DC Resistance (50mm): ~ 8. A new wind, a new magnet, a new signature Pete Thorn tone. Humbucker Size P90 Plastic Covered Pickup Alnico 5 Roswell Pickups. AVAILABLE OPTIONS. Red & White wired together.Balises :Suhr GuitarsWiresElectrical wiringSuhr Pickup Wiring DiagramWiring Diagram Suhr Pickups - Wiring Diagramwiringdiagram. Suhr Wiring Conversion Kit Deacci Custom Pickups.In the example above, we are indicating the series connection with the Green and Red lead.Hand crafted for a lifetime of unparalleled quality and tone, our Single Coil pickups include 100% USA made Alnico V magnets and wire manufactured to our specifications.8 kΩ (RWRP) DC Resistance, Bridge: 5. Specifications: Woodbucker Bridge DC RESISTANCE: ~ 12.Balises :WirePickupSingleClassicBrand:SUHR
Shop
Suhr pickups are the result of extensive R&D and over 20 years experience in .3KΩ (53mm) MAGNET TYPE: Alnico II. My LP never sounded better and grounding is absolutely silent.SUHR SINGLE COIL PICKUPS.Classic Tele tones, from clean and snappy to warm and punchy with just the right amount of growl.Balises :WireSuhr Pickup Wiring ColorSeymour Duncan Wiring Diagrams
ObsidianWire
Magnet: Alnico IV. COLOR OPTIONS: Black, Parchment, White, Zebra, Reverse Zebra, Nickel Chrome, Raw Nickel, and Gold. Hook Up Wire: Cloth braided. Specifications: Woodbucker Neck DC RESISTANCE: ~ 7. AVAILABLE CONFIGURATIONS CLASSIC T BRIDGE Magnet: Alnico V SpecialDC . SKU: 01-CLS-0001.Specifications: DC RESISTANCE: ~ 9. Magnet Type: Alnico 5 Special. DC Resistance (53mm): ~ 8. It's the insulation that is colored.
50s and 60s choices is great. NECK PICKUP OPTIONS The Classic T Neck pickup is available with either a chrome or gold plated cover. FIND A DEALER SHARE. Standard Stratocaster Wiring Scheme Guitar diy, Custom . Of course, a quick call or email to Suhr would confirm that. For more wiring . (Wired in standard humbucking mode) ***If your pickup is not listed here check on your pickup manufacture's website.04-17-2018, 05:44 AM.BALANCED NECK PICKUP TONE Our Chrome Neck T pickup adds clarity and warmth to round out the perfect set of pickups for our Classic T and similar guitars.
